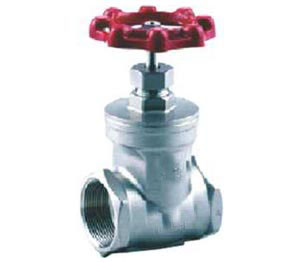

Investment Casting Gate / Globe / Lift Up Type Check Valve
| PRODUCT DESCRIPTION | |
|---|---|
| BODY WEDGE | ASTM A 351 Gr CF8 | CF8M |
| TRIMS | AISI 304 | AISI 316 |
| ENDS | SCREWED TO BSP SOCKET WELD END TO ASME B 16.11 |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) SEAT : 800 Psig (56 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 100 MM |

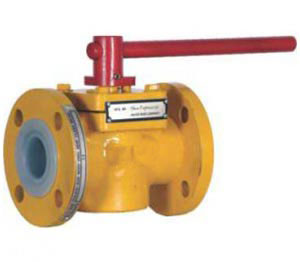

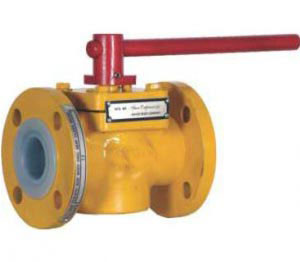

S.g.iron Fep / Pfa Lined Plug Valve Flanged End Class 150
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | GGG 40 WITH FEP | PFA |
| COVER | GGG 40 |
| PLUG | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| DIAPHRAGM | PTFE |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY: 10 Kg/Cm ² SEAT: 10 Kg/Cm ² |
| SIZE RANGE | 15 MM TO 200 MM |

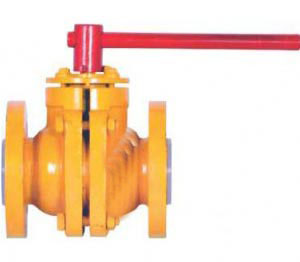

S.g.iron Fep / Pfa Lined Two Piece Design Ball Valve Class 150
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | GGG 40 WITH FEP | PFA |
| BALL | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| STEM | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 10 Kg/Cm ² SEAT : 10 Kg/Cm ² |
| SIZE RANGE | 15 MM TO 200 MM |

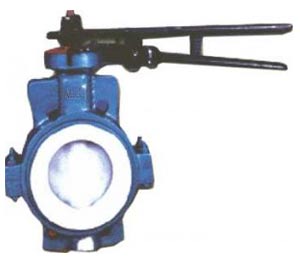

S.g.iron Fep / Pfa Lined Wafer Type Butterfly Valve
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | GGG 40 |
| DISC | CF8 + PFA | FEP LINED |
| SEAT | PTFE |
| MFG STD | BS 5155 |
| INSP & TEST STD | BS 6755 (PART- II) |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | FEP : MAXIMUM 200 ºC , PFA : MAXIMUM 260 ºC |
| SPARK TEST | 10 KVDC |
| ENDS | WAFER TYPE TO SUIT ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 07 Kg/Cm ² SEAT : 07 Kg/Cm ² |
| SIZE RANGE | 40 MM TO 400 MM |

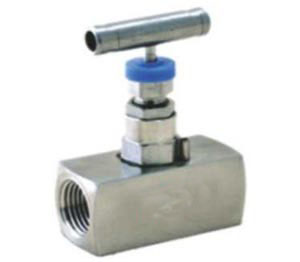

Ss 304 / Ss 316 Needle Valve Screwed Bonnet Screwed End
| PRODUCT DESCRIPTION | |
|---|---|
| MOC | AISI 304 | AISI 316 |
| TRIMS | AISI 304 | AISI 316 |
| MFG STD | MARCK | 022 |
| TESTING | MARCK | 022 |
| HAND WHEEL | BAKELITE |
| ENDS | SCREWED TO BSP | BSPT | NPT SOCKET WELD TO ASME B 16.11 |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) SEAT : 800 Psig (56 Kg/Cm ²) |
| SIZE RANGE | 8 MM TO 50 MM |

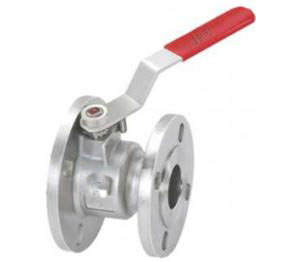

Ss Flush Bottom Ball Valve Flanged End
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 351 Gr CF8 | CF8M |
| BALL | ASTM A 351 Gr CF8 | CF8M |
| STEM | AISI 304 | AISI 316 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 |
| BLOW OUT PROOF STEM | FLOATING BALL FULL BORE |
| TESTING | GENERALLY CONFORMING TO BS 6755 |
| PRESS. TEMP RATING | CONFORM TO TABLE 3 OF BS 5351 |
| LEVER | AISI 304 WITH PVC SLEEVE |
| ENDS | FLANGED TO ASA 150# |
| SIZE RANGE | 50 MM x 50 MM TO 100 MM x 100 MM |

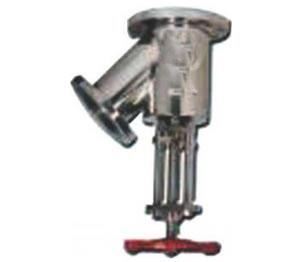

Ss Flush Bottom Tank Valve Flanged End Outside Yoke &spindle Type
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 351 Gr CF8 | CF8M | CF3M |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni 2 MO | CF 3M OR AISI 316L |
| MFG STD | MARCK | 020 |
| INSP & TEST STD | MARCK | 020 |
| ENDS | FLANGED TO BS 10 TABLE “F ” FLANGED TO ASME B 16.5 RF (150#) |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) SEAT : 300 Psig (21 Kg/Cm ²) |
| SIZE RANGE | 25 MM TO 100 MM |

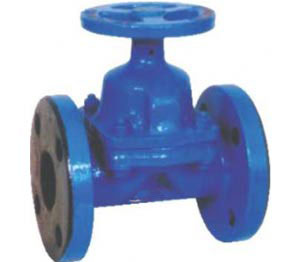

S.g.iron Fep / Pfa Lined Diaphragm Valve Flanged End Class 150
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | GGG 40 WITH FEP | PFA LINED |
| BONNET | ASTM A 216 Gr WCB |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | FEP : MAXIMUM 200 ºC | PFA : MAXIMUM 260 ºC |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 |
| HYD-TEST PRESSURE | BODY : 10 Kg/Cm ² SEAT : 10 Kg/Cm ² |
| SIZE RANGE | 25 MM TO 200 MM |
Fep / Pfa Sleeve Plug Valve Flanged End Table “e” / Class 150
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | IS 210 Gr FG 200 | 220 | WCB | AISI 304 | AISI 316 |
| PLUG | AISI 304 | AISI 316 WITH PTFE SLEEVE |
| DIAPHRAGM | PTFE |
| ENDS | FLANGED TABLE “E” | ASA 150# |
| SIZE RANGE | 25 MM TO 150 MM |
G.m.steam Stop Valve
| PRODUCT DESCRIPTION | |
|---|---|
| ENDS WITH S.S.WORKING PARTS SUITABLE TO 250psig Working Press. | |
| ENDS | SCREWED |
| SIZE RANGE | 15 MM TO 80 MM |

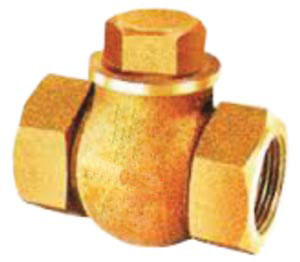

G.m.horizontal Non Return Valve As Per Is / 778, Cl-i
| PRODUCT DESCRIPTION | |
|---|---|
| ENDS | SCREWED |
| SIZE RANGE | 15 MM TO 100 MM |

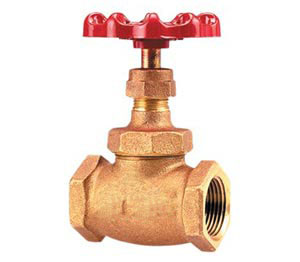

G.m.globe Valve As Per Is /778,cl-i
| PRODUCT DESCRIPTION | |
|---|---|
| ENDS | SCREWED |
| SIZE RANGE | 15 MM TO 100 MM |

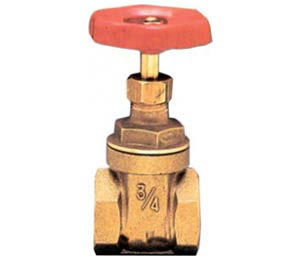

G.m.gate Valve As Per Is / 778, Cl-i
| PRODUCT DESCRIPTION | |
|---|---|
| ENDS | SCREWED |
| SIZE RANGE | 15 MM TO 100 MM |

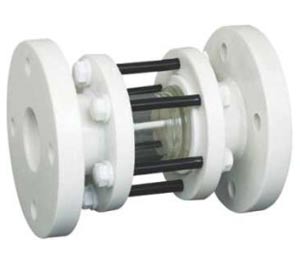

Sight Glass
| PRODUCT DESCRIPTION | |
|---|---|
| FLANGES | ACTACTIC POLYPROPYLENE COPOLYMER |
| GLASS | TOUGHENED BOROSIL GLASS |
| SEAT | PTFE |
| ENDS | FLANGED TO BS 10 TABLE “E” | “F” FLANGED TO ASME B 16.5 RF (150#) |
| SIZE RANGE | 15 MM to 300 MM |

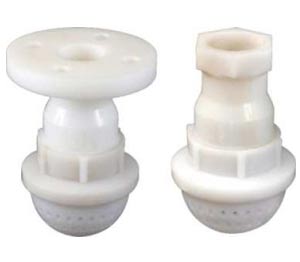

Foot Valve
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ACTACTIC POLYPROPYLENE COPOLYMER |
| SCREEN | ACTACTIC POLYPROPYLENE |
| BALL | POLYPROPYLENE RE-INTORCED |
| STOP RING | ACTACTIC POLYPROPYLENE |
| SEAT | PTFE |
| ENDS | SCREWED TO BSP FLANGED TO BS 10 TABLE ‘D’ |
| SIZE RANGE | 25 MM to 300 MM |

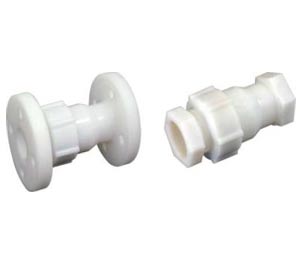

Non Return Valve
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ACTACTIC POLYPROPYLENE COPOLYMER |
| BALL | POLYPROPYLENE |
| STOP RING | ACTACTIC POLYPROPYLENE |
| SEAT | PTFE |
| ENDS | SCREWED TO BSP FLANGED TO BS 10 TABLE ‘D’ |
| SIZE RANGE | 25 MM to 300 MM |

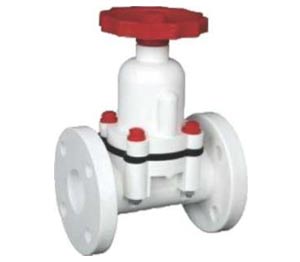

Diaphragm Valve
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | POLYPROPYLENE |
| TRIMS | CARBON STEEL |
| DIAPHRAGM | NEOPRENE RUBBER |
| ENDS | FLANGED TO BS 10 TABLE ‘D’ |
| SIZE RANGE | 15 MM TO 150MM |

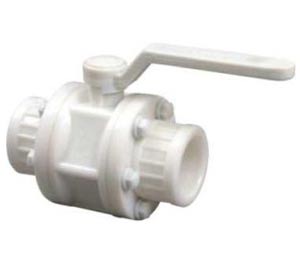

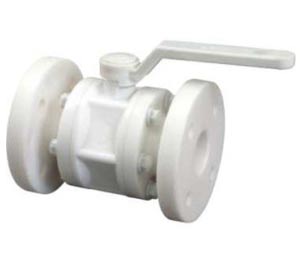

Polypropylene Three Piece Design Ball Valve Floating Ball Full Port
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | POLYPROPYLENE |
| BALL & STEM | POLYPROPYLENE |
| SEAT & SEALS | PTFE |
| MFG STD | MARCK | 024 |
| TESTING | MARCK | 024 |
| ENDS | SCREWED TO BSP |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm ²) SEAT : 165 Psig (11.5 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 100 MM |
Polypropylene Three Piece Design Ball Valve Floating Ball Full Port
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | POLYPROPYLENE |
| BALL & STEM | POLYPROPYLENE |
| SEAT & SEALS | PTFE |
| MFG STD | MARCK | 024 |
| TESTING | MARCK | 024 |
| ENDS | SCREWED TO BSP |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm ²) SEAT : 165 Psig (11.5 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 100 MM |

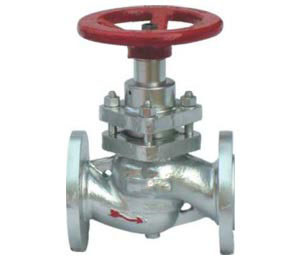

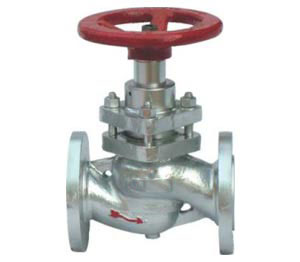

Cage Type Glandless Piston Valve Bolted Bonnet,rising Stem
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 216 Gr WCB | IS 210 Gr FG 200 |
| TRIMS | 13 Cr |
| PISTON RING | CAF 40 |
| MFG STD | MARCK | 018 |
| INSP & TEST STD | MARCK | 018 |
| MAX. C.W.P | 175 Psig (12.3 Kg/Cm ²) |
| ENDS | FLANGED TO DIN 2533 (PN 16) |
| HYD-TEST PRESSURE | BODY : 341 Psig (24 Kg/Cm ²) SEAT : 225 Psig (16 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 200 MM |
Cage Type Glandless Piston Valve Bolted Bonnet,rising Stem Ibr
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 216 Gr WCB |
| TRIMS | 13 Cr |
| PISTON RING | CAF 40 |
| MFG STD | MARCK | 018 |
| INSP & TEST STD | MARCK | 018 |
| MAX. C.W.P | 175 Psig (12.3 Kg/Cm ²) |
| ENDS | FLANGED TO DIN 2533 (PN 16) |
| HYD-TEST PRESSURE | BODY : 341 Psig (24 Kg/Cm ²) SEAT : 225 Psig (16 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 200 MM |

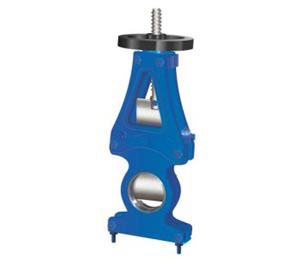

S/steel Compact Design Pulp Valve Double Gland
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 351 Gr CF8 | CF8M |
| TRIMS | AISI 304 | AISI 316 |
| WEDGE | SS 304 | SS 316 PLATE |
| MFG STD | GENERALLY CONFORMING TO MSS SP 81 |
| INSP & TEST STD | GENERALLY CONFORMING TO MSS SP 81 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | WAFER TYPE SUITABLE FOR BS 10 TABLE “D” | ASME B 16.1 (125#) |
| SIZE RANGE | 50 MM TO 400 MM |
Compact Design Pulp Valve Double Gland
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | IS 210 Gr FG 200 |
| TRIMS | AISI 304 |
| WEDGE | SS 304 PLATE |
| MFG STD | GENERALLY CONFORMING TO MSS SP 81 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | WAFER TYPE SUITABLE FOR BS 10 TABLE “D” | ASME B 16.1 (125#) |
| SIZE RANGE | 40 MM TO 500 MM |
Angle Check Valve Pn 10 Rating Bolted Bonnet
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | COVER | IS 210 Gr FG 200 | 220 |
| TRIMS | 13 Cr |
| MFG STD | GENERALLY CONFORMING TO BS 1873 |
| INSP & TEST STD | GENERALLY CONFORMING TO BS 6755 |
| ENDS | FLANGED TO DIN 2532 |
| HYD-TEST PRESSURE | BODY : 213 Psig (15 Kg/Cm ²) SEAT : 142 Psig (10 Kg/Cm ²) |
| SIZE RANGE | 15 MM to 200 MM |
Angle Check Valve Pn 40 Rating Bolted Bonnet
| PRODUCT DESCRIPTION | |
|---|---|
| BODY | COVER | ASTM A 216 Gr WCB |
| TRIMS | 13 Cr |
| MFG STD | GENERALLY CONFORMING TO BS 1873 |
| INSP & TEST STD | GENERALLY CONFORMING TO BS 6755 |
| ENDS | FLANGED TO DIN 2545 |
| HYD-TEST PRESSURE | BODY : 854 Psig (60 Kg/Cm ²) SEAT : 569 Psig (40 Kg/Cm ²) |
| SIZE RANGE | 15 MM to 250 MM |
